Description

The Matica ZT10 Personalization Card Issuance Embossing System Brochure is produced by Brochures. Brochures specalizes in developing premium products. All ID Focuses on sourcing only the most reliable products. This product was sourced by All ID because it is one of the top rated products from Brochures.

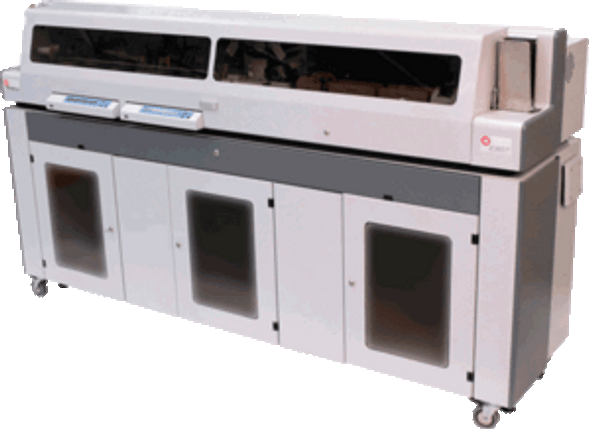

Matica ZT10 Personalization Card Issuance Embossing System



The "All-In-One" Solution For Mid-Volume Personalization Card Issures System

The ZT10 combines every credit card technology into one integrated system. The ZT10 has smart card encoding, magnetic stripe encoding, embossing, indenting and printing for logos or full co lour photos.

Reaching speeds of 600 cards per hour, the ZT10 is perfect for manufacturing personalized cards. It is designed to be able to link to Matica¿s card mailing systems as well.
Target Markets
Financial Institutions, Card Manufacturers, Service Bureaus, Retailers, Insurance Companies
Matica ZT10 Personalization Card Issuance Embossing System

Embossing And Front & Rear Indenting In One Single Pass
Making it one of the most versatile card issuance systems available, model ZT10 can perform embossing, front indent and rear indent, all in one single pass.

Dual-Sided Monochrome Or Co lour Printing
The ZT10 integrates a professional card printer particularly designed for monochrome and co lour printing capability. Thanks to the two flip-over (one before and one after the printing module) printing front or reverse will not affect the production speed. The Advance Clean® Card Cleaning System ensures that cards are free from dust and debris thus maximizing the lifetime of the print head as well as print quality.

Magnetic Stripe Encoding
The ZT10 integrates an ISO 7811 magnetic stripe encoder. MiniCard® / MiniVisa® compress encoding is also available.

Single Or Multi-Chip Smart Card
The ZT10 can incorporate a single smart card contact or Matica¿s new revolutionary Smart Card Personalization module which can simultaneously personalize up to 5 smart cards.

EMV Smart Card Personalization
Matica partners with some of the largest smart card industry solution providers to offer complete EMV card personalization solutions.

RFID Card
The ZT10 can incorporate an RFID Mifare reader to read or personalize contact-less type of cards.

Tipper
The ZT10 integrates the card tipper module for which a wide range of colors (black, gold, silver, blue, etc.) are available.

Maticard Production Software
The MatiCard® Windows-based Card Design software provides easy user interface between the operator and the unit.

Floor Cabinet
Model ZT10 is supplied as a freestanding floor unit incorporating a cabinet with storage capacity for cards and consumables as well as a support for an external monitor and keyboard.

Mailer In-Line
The ZT10 can be linked to the MS10 or MS20 mailing systems to provide a complete and secure full personalization process.

Matica_ZT10_Card_Issuance_System

Matica_Z-Line_Card_Issuance_Systems_Overview_Data_Sheet

Technical Features

Productivity (42 ch/card):

  • up to 600 cph
  • Co lour near edge-to-edge: up to 120 cph
  • Co lour photo: up to 180 cph (with half panel ribbon)

Card handling:

  • Input hopper capacity: 250 cards
  • Output hopper capacity: 250 cards (approx. 200 embossed)
  • Reject cards hopper
  • Cards format: ISO Std. CR80 - 0.76 mm

Card Personalization:

  • Magnetic stripe encoding ISO 7811
  • Transport module for in-field Multi-Chip module upgrade
  • Two Flip-Over for dual/sided printing (one before and one after the printing module)
  • Graphic thermal printing module:
    - Full co lour/monochrome
    - 300 dpi print resolution
    - Near edge-to-edge print area
    - Advance clean® cleaning tape and roller system
  • Embossing drum: 80, 100 characters or 114 characters (53 emboss + 61 indent)
  • Tipper module with ribbon saving feature (122 mt)

Options:

  • Front infillers device
  • Rear infillers device
  • Single Smart Card Station
  • MiniVisa® compress encoding
  • Multi-Chip smart card module:
    - 5 contact stations with USB Smart Card Reader (PCSC Driver)
    - USB HUB

Available Fonts:

  • Std. Gothic and OCR7B emboss
  • OCRB1 and OCRB4 front indent
  • OCRA1 and CVV2 rear indent
  • Visa Flying V , country specific and other embossing/indent types

Ribbon Types:

  • Black monochrome ribbon: 1000 or 5000 prints/roll
  • Other monochrome ribbons (red, blue, green, white, gold and silver): 1000 prints/roll
  • Scratch-off ribbon: 1000 cards/roll
  • 5-panel YMCKO ribbon: 200 or 1000 images/roll
  • Half-panel YMCKO ribbon (specially for photo): 400 images/roll
  • 6-panel YMCKOK ribbon: 200 images/roll
  • 2-panel KO (black varnish overlay) ribbon: 500 images/roll

Communication Interface:

  • 1 RS232 serial port
  • 1 extra USB port for Multi-Chip module

Software:

  • MatiCard Design® Software for Windows® 2K/XP
  • Diagnostics and set-up software included

Other Features:

  • Key-lock security feature
  • LCD display (40x2) + 3 function keys
  • Upgradeable Firmware via PC on Flash EPROM
  • Floor support cabinet and monitor and keyboard support

Dimensions (incl. floor support):

  • Height: 67.91" (1725 mm)
  • Width: 46.49" (1181 mm)
  • Depth: 21.69" (551 mm)
  • Weight (Incl floor support): 451.94 lbs. (205 Kg)

Power Requirements:

  • Electrical requirements: 100V~240V 50/60Hz
