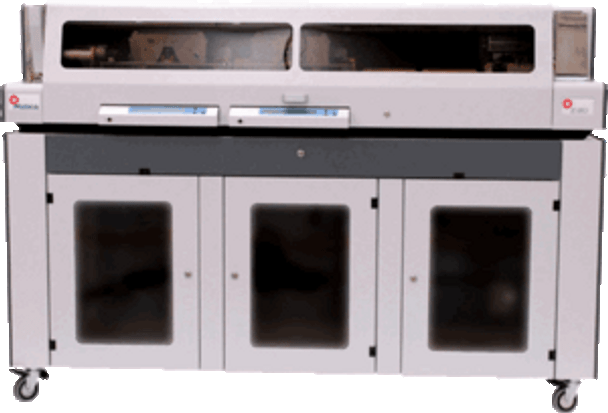

Matica Z20 Dual Drum Card Issuance Embossing System

(No reviews yet) Write a Review
SKU:
Z20
UPC:
Z20
MSRP: $74,900.00
$0.00
— You save $74,900.00
Frequently bought together:

Description

The Matica Z20 Dual Drum Card Issuance Embossing System is Manufactured by Matica. Matica specalizes in developing premium products. All ID focuses on sourcing the newest and most advanced products. This product was sourced by All ID because it is one of the top rated products developed by Matica.




Dual Drum Centralized Card Issuance System. The Z20 is part of a totally new generation of card issuance systems from Matica, specifically designed for cost-conscious service bureaus, card manufacturers and financial institutions for mid- and high- volume centralized card issuance programs. The Z20, with two embossing drums, speeds up the personalization of cards from data encoding through the tipping process.
Call, Live Chat or Fill out a form for your lowest price Guarantee!



Matica Z20 Dual Drum Card Issuance Embossing System

Dual Drum Centralized Card Issuance System

The Z20 is part of a totally new generation of card issuance systems from Matica, specifically designed for cost-conscious service bureaus, card manufacturers and financial institutions for mid- and high- volume centralized card issuance programs. The Z20, with two embossing drums, speeds up the personalization of cards from data encoding through the tipping process.

Target Markets
Financial Institutions, Service, Retailers, Card Manufacturers, Governments, Insurance Companies
Matica Z20 Dual Drum Card Issuance Embossing System

Up To 800 Cards Per Hour
Through a highly effective card transportation and embossing mechanism composed of 2 embossing modules, productivity levels reach up to 800 cards/hour. The systems have been designed to maximize operator efficiency and reduce issuance costs.

Magnetic Stripe EncodingThe Z20 integrates an ISO 7811 magnetic stripe encoder.

Single Or Multi-Chip Smart Card
The Z20 can incorporate a single smart card contact or Matica’s new revolutionary Smart Card Personalization module which can simultaneously personalize up to 10 smart cards.

EMV Smart Card Personalization
Matica partners with some of the largest smart card industry solution providers to offer complete EMV card personalization solutions.

RFID Card
The Z20 can incorporate an RFID Mifare reader to read or personalize contact-less type of cards.

Tipper
The Z20 integrates the card tipper module for which a wide range of colors (black, gold, silver, blue, etc.) are available.

Maticard Production Software
The MatiCard® Windows-based Card Design software provides easy user interface between the operator and the unit.

Floor Cabinet
Model Z20 is supplied as a freestanding floor unit incorporating a cabinet with storage capacity for cards and consumables as well as a support for an external monitor and keyboard.

Mailer In-Line
The Z20 can be linked to the MS10 or MS20 mailing systems to provide a complete and secure full personalization process.

Matica_Z20_Card_Issuance_System.pdf

Matica_Z-Line_Card_Issuance_Systems_Overview_Data_Sheet.pdf

Technical Features

Productivity (42 ch/card):

  • up to 800 cph

Card handling:

  • Input hopper capacity: 250 cards
  • Output hopper capacity: 250 cards (approx. 200 embossed)
  • Reject cards hopper
  • Cards format: ISO Std. CR80 - 0.76 mm

Card Personalization:

  • Magnetic stripe encoding
  • Two transport modules for in-field Multi-Chip module upgrade
  • Two embossing drums: 80, 100 characters or 114 characters (53 emboss + 61 indent)
  • Tipper module with ribbon saving feature (122 mt)

Options:

  • Front infill device
  • Rear infill device
  • Single Smart Card Station
  • RFID Mifare Station
  • One (or two) Multi-Chip smart card module:
    • 5 contact stations with USB Smart Card Reader (P C S C Driver)
    • USB HUB

Available Fonts:

  • Std. Gothic and OCR7B emboss
  • OCRB1 and OCRB4 front indent
  • O C R A 1 and CVV2 rear indent
  • Visa Flying “V” , country specific and other embossing/indent types

Communication Interface:

  • 1 RS232 serial port
  • 1 or 2 extra USB ports for Multi-Chip modules

Software:

  • MatiCard Design® Software for Windows® 2K/XP
  • Diagnostics and set-up software included

Other Features:

  • Key-lock security feature
  • 2 LCD display (40x2) + 3 function keys
  • Upgradeable Firmware via PC on Flash EPROM
  • Floor support cabinet
  • Monitor and keyboard support

Dimensions (incl. floor support):

  • Height: 46.49" (1181 mm)
  • Width: 67.99" (1727 mm)
  • Depth: 21.69" (551 mm)
  • Weight (Incl floor support): 451.94 lbs. (205 Kg)

Power Requirements:

  • Electrical requirements: 100V~240V 50/60Hz
