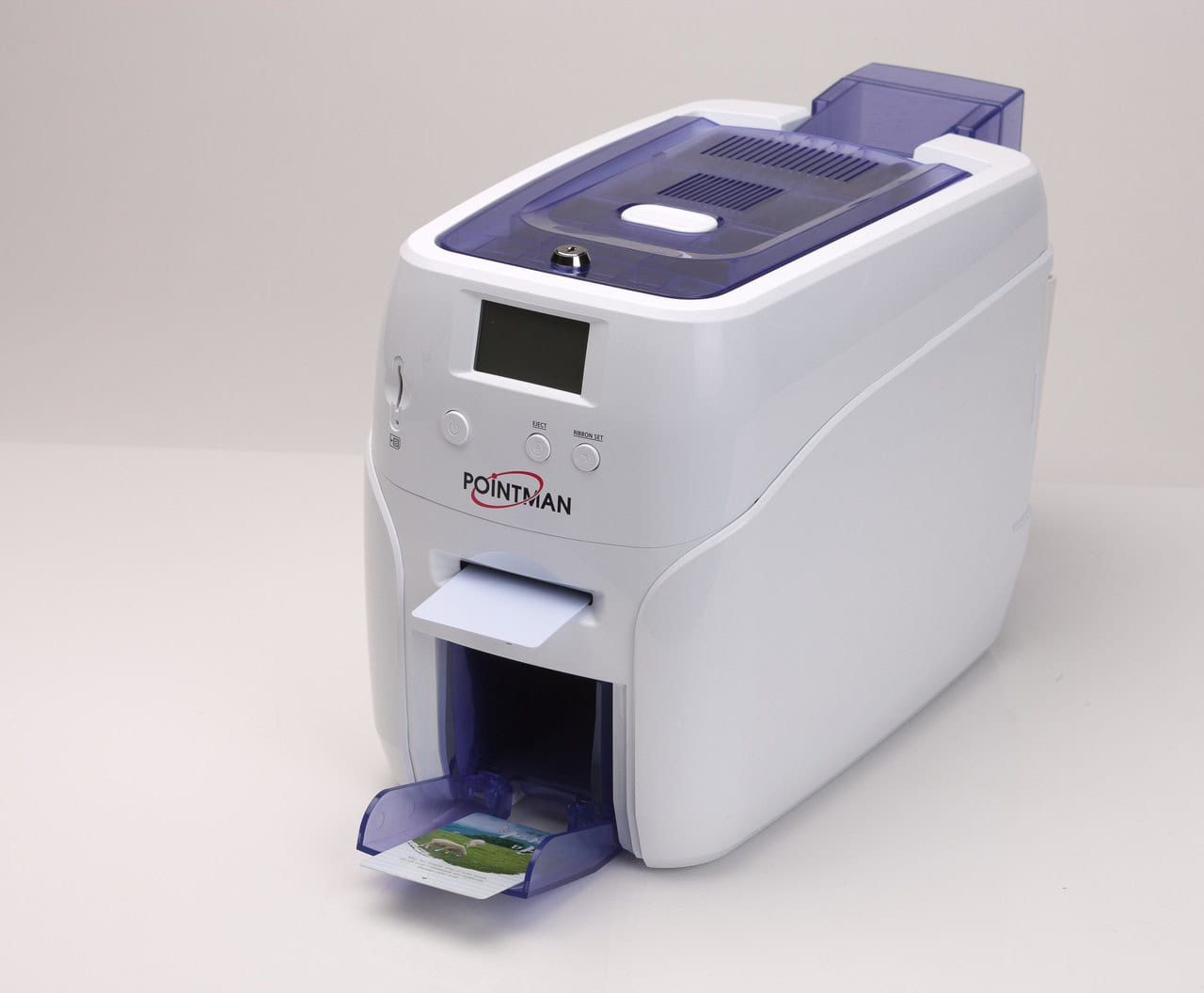

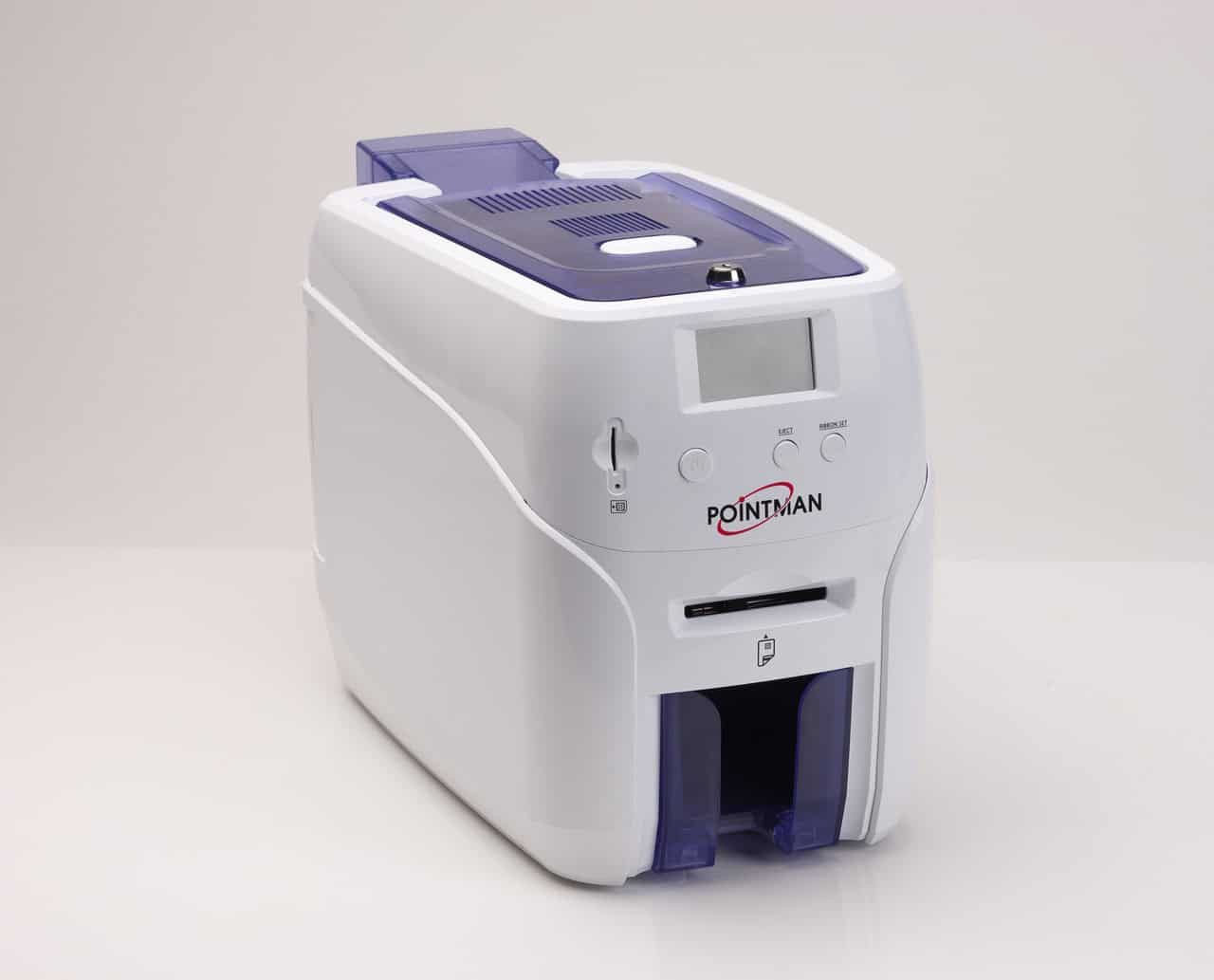

Pointman Nuvia N12-0001-00 N20 single side printer ‐ USB & Ethernet N12-0001-00

SPECIFICATIONS

The Pointman Nuvia N 20 single side printer, USB & Ethernet N 20-10000 E T N was developed by Pointman. Pointman specializes in developing high tech products. All ID Focuses on sourcing only the most reliable products. This product was sourced by All ID because it is one of the top rated products developed by Pointman.

NUVIA

LOCK IN A MORE SECURE CARD PRINTING SOLUTION. FITS YOUR SPACE, YOUR NEEDS, AND YOUR BUDGET.

You can simplify your card printing without giving up quality and security. The POINT MAN direct-to-card printer produces vibrant color, edge-to-edge printing, and security features to issue professional-looking cards instantly.

IDEAL FOR

• ID badges

• Access control cards

• Bank cards

• Gift cards

• Loyalty cards

• Membership cards

LOCKED ENCLOSURES. Protect unauthorized access with multiple locks and lock slot.

SECURE ENCODING. Magnetic stripe (ISO and non-ISO), contact smart card encoding (E M V, ISO 7816), and contactless smart card encoding (ISO and Mi fare).

FAST PRINT SPEED. 190 cards/ hour (full-color, single-sided), and up to 140 cards/hour (full-color, dual-sided).

COMPACT. Lightweight design with the small footprint allow you to operate the Nuvia card printer where you need it most.

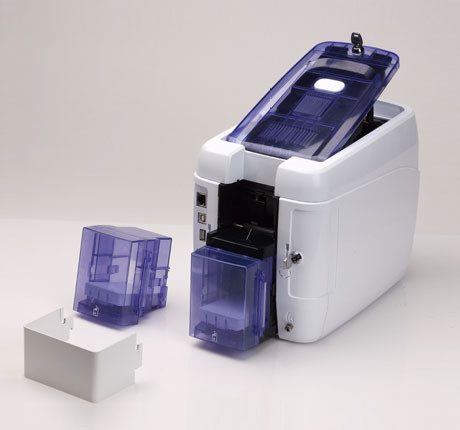

FLEXIBLE FEEDING OPTIONS. Innovative dual hopper lets you load up to 200 cards or 2 different types of cards to avoid reloading.

MOBILE ACCESS. Design and print right from your smartphone or tablet with our mobile app.

USER-FRIENDLY. Simplicity is built into the design, operation, and user interface.

READY TO RUN. Your Nuvia comes loaded with Card Designer TM software and printer driver already installed.

RELIABLE. Pointman offers unmatched protection, with a 5-year warranty on the printer and 3 years on the print head.

PRINTER

•Direct-to-card Dye-sublimation/Resin thermal transfer
•Single or Dual sided printing
•Additional hopper for the type of cards or the extend
•Edge-to-Edge printing
•Full-color and monochrome printing capability
•300 d p l (11.8 dpi), 16.7 Million Colors
•128 MB memory

CARD

•Card Type: PVC and composite PVC Cards
•Card Thickness: 15 mil ~ 40 mil card
•Card Format ISO CR 80-ISO 7810 (3.370 in x 2.125 In)

Capacity
-Input hopper: 100 cards(30 mil)
-Up too 200 cards with dual hopper option
-Output hopper: 60 cards(30 mil)
-Manual single feed: 1 card input
*Input/output hopper is not available for N 10.

OPTIONAL ENCODING

Magnetic Stripe encoding
-(Track 1,2,3), (Hi Co & Lo Co)
-J I S II

Contact smart card encoding
-E M V Level 1 (PC/SC, serial)

Contactless smart card encoding

OPERATING ENVIRONMENT

•Min/Max operating temperature ( 5 / 40̊ C), (41 / 104 F)
•Humidity: 20% to 65% non-condensing
•Min/max storage temperature (-10 / 60̊ C), (14 / 140 F)
•Storage humidity: 20% t o 70% non-condensing

INTERFACE

•USB 2.0 (High-Speed)
•Built in 10/100 Ethernet IP Port (optional)
•WiFi (optional)

CONSUMABLE

Ribbon
•YMCKO: 200 prints/roll
•Y M C K 0-K: 170 prints/roll
•Half YMCKO: 400 prints/roll
•KO: 500 prints/roll
•Monochrome ribbon: 1000 prints/roll

DRIVER & SOFTWARE

Operating System
•Windows Vista, Windows 7 & 8 & 10,
-Windows 2003/2008 server

Software Package
-”Card Designer“ for Easy Printing

Font
-True Type Fonts via windows Drivers

DISPLAY

•4-line white LCD indicates status of printer
•L E D notification  of empty/low level ribbon, empty input hopper, error

PACKAGING CONTENT

•Printer
•Quick Start Manual
•CD-ROM (driver, software and user manual)
•USB printer cable
•Cleaning roller card (CR-80)
•Power supply cord

CLEANING KIT

Standard Kit
-(T-card 2, CR-80 Cleaning Card 2, Alcohol Swab 3)

Advanced Kit
-(T-card 3, CR-80 Cleaning Card 5, Alcohol Swab 7, Thermal Cleaning Pen 1)
• CR·80 Cleaning Card, Thermal Print Head Cleaning Pen

PRINTING SPEED

Full-Color Printing
-Single Side: 180 ~ 200 cards / hour
-Dual Side: 140 / hour    YMCKO 95 / hour

Mono printing -800 cards / hour

POWER

Input-AC 100 V~240 V, 50/60 HZ

Output-DC 24 V, 2.5 A

SECURITY

physical lock slot
• Hopper lock (N 20/N 30)
• Top cover lock

CERTIFICATION

•FCC Class A.
•CE (EN 55022 Class A, EN 55024 ), C C C, K C C
•ENERGY STAR
•R o H S

WARRANTY

*under specific condition
•Printer 5-years
•Printer Head 3-years

For a reliable, easy-to-use card printer that delivers a security card printing solution, contact your authorized Pointman representative to schedule a demo of the Nuvia card printer.

WHY PICK POINT MAN ?

After years of leading the card printing market in the Asia Pacific region, Pointman has brought its global reputation for quality and affordability to North America. Our direct thermal and thermal transfer printers integrate the most advanced technology, which is supported by extended warranties and responsive service. Discover your new trusted provider. Contact us today.
