Description
The Embosser 1000 is the ideal solution for a variety of personalization needs - it combines desktop dimensions with heavy duty performance. 500 CPH. Equipped with the M S P system (Multi Smart Processing) allowing 3 cards to be processed simultaneously. FIFO (first in - first out) input hopper with a 200 card capacity. Available with special characters to meet the requirements of VISA and MasterCard for personalization of international credit cards. was developed by CIM. CIM is a world leader in premium products. All ID focuses on sourcing the newest and most advanced products. This product was sourced by All ID because it is one of the top rated products manufactured by CIM.
The Embosser 1000 is the ideal solution for a variety of personalization needs - it combines desktop dimensions with heavy duty performance. 500 CPH. Equipped with the M S P system (Multi Smart Processing) allowing 3 cards to be processed simultaneously. FIFO (first in - first out) input hopper with a 200 card capacity. Available with special characters to meet the requirements of VISA and MasterCard for personalization of international credit cards.

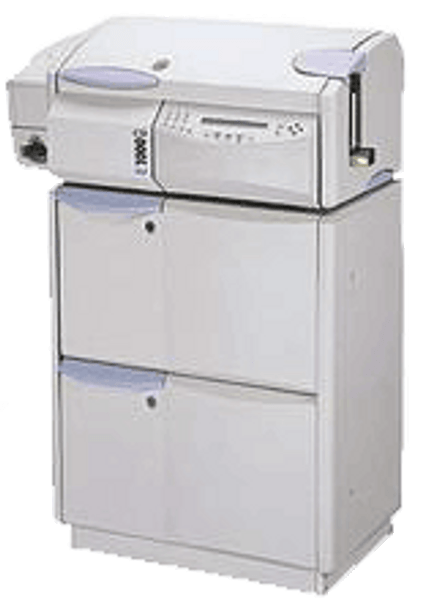

ZP04502 CIM Pro Series 1000 Embosser
The Embosser 1000 is the ideal solution for a variety of personalization needs - it combines desktop dimensions with heavy duty performance. 500 CPH. Equipped with the M S P system (Multi Smart Processing) allowing 3 cards to be processed simultaneously. FIFO (first in - first out) input hopper with a 200 card capacity. Available with special characters to meet the requirements of VISA and MasterCard for personalization of international credit cards.
| TECHNICAL SHEET | |
| Available Options | Infill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard). Auxiliary printer port. Chip contact initializing. Floor stand unit for Pro Series. |
| Built-in Tipper Unit | Off-line tipping possibility (11 lines). Ribbon saving feature. |
| Communication Interface | Serial RS232 port. |
| Dimension | 34"x19"x13,75" (860 x 480 x 350 mm) |
| Weight | 138 lbs (62 kg.) |
| Drum Capacity | Drum capacity: 105 characters, embossing and/or infill. |
| Electrical Requirements | 117 V / 60 Hz -220 V / 50 Hz. |
| Input Hopper Capacity | 200 cards. Pre-embossed card automatic feed feature. |
| Magnetic Stripe Encoding | 3 Tracks ISO 7811, LoCo/HiCo. |
| Output Hopper Capacity | 200 embossed cards. Reject hopper. |
| Performance | Approx. 500 CPH. Multi Parallel Processing System: 3 cards simultaneously processed. |
| Software | Windows based application software. Firmware: self diagnostic, select automatic repeat card, pre-embossed card reading with full post processing of the same card, reset and non reset counters. System status and diagnostic messages reported on PC. Optional Link Ware application for in-line operation with other Pro Series modules. |
| SOFTWARE |
| MultiCard 2006 is CIM's response to the ever increasing demand for sophisticated software for card production through intelligent and safe data management and high level professional graphic elaboration. |
| Intelligent and flexible system allowing management of different internal record variables, such as: date, time, magnetic track contents and barcode. Thanks to the OLE DB, ODBC and COM technology, easy access to all the information can be made from any existing data base and from Access, Excel and DBF programs. The field engine also permits different field variables to be combined in the same record and for fixed text to be added. Partial extraction from each field is also possible. It is possible to memorize and control the record information concerning the production of cards, like date, time, identification, duplication of cards. |
|
|
| It can manage and control the machine: the printer set up involves a dialogue window where all the components can be directly modified. MultiCard 2006 is also designed to control additional connected machines making use of the same graphic interface. There is a wizard that help the operator set-up the parameters of the machine and of the printing job. |
| Drivers | O L E D B, ODBC |
| Interfaces | OCR, Barcode , Magnetic, Micro Chip, Contactless |
| Manuals | Manual PDF |
| Modular software to provide In-Line connectivity between CIM Pro Series modules | |
| Operating System | Windows NT 4.0 / 2000 / XP |
| Printing Drivers | Windows NT 4.0 / 2000 / XP |
| Software language | Visual C ++ 32 BIT |
For more Information:
CIM Pro Series Embosser 100 Brochure
CIM_Pro-Series_Embosser_1000.pdf
