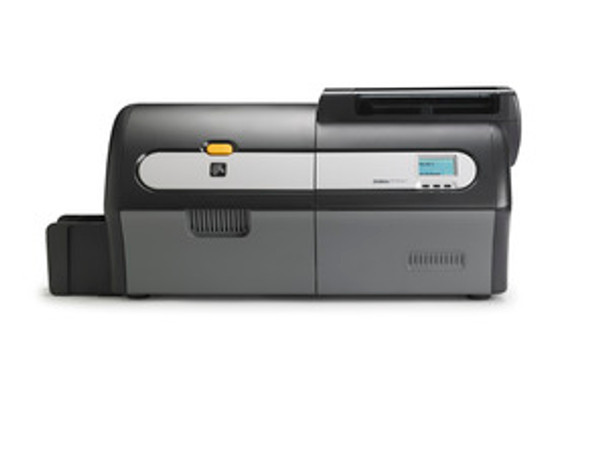

Zebra ZXP Series 7 Dual-Sided ID Card Printer – High-Speed Printing with Lamination and Advanced Encoding

Enterprise-Grade Card Printing for Secure ID Badges, Access Cards, and Credentialing Programs

The Zebra Z72-000C0000US00 ZXP Series 7 Card Printer is a high-performance, dual-sided ID card printer engineered for high-volume, high-security environments. Built with Zebra’s latest card-printing technology and sourced by ALL ID for its proven reliability, this model delivers sharp, vibrant, edge-to-edge prints with precise color control. Designed to reduce total cost of ownership while maximizing speed and output quality, the ZXP Series 7 is ideal for corporate ID programs, government credentials, university cards, and service bureaus.

Key Features of the Zebra ZXP Series 7 (Z72-000C0000US00)

• High-Speed, High-Quality Printing:

1. Up to 1375 monochrome cards/hour (single-sided)
2. Up to 300 full-color YMCKO cards/hour (single-sided)
3. Up to 225 full-color YMCKOK cards/hour (dual-sided)
4. Optional lamination: 270 cards/hour (YMCK) or 200 cards/hour (YMCKK dual-sided)

• Print Technology: Dye sublimation and monochrome thermal transfer
• Resolution: 300 dpi / 11.8 dots per mm for crisp, professional-grade output
• Media Handling:

1. Auto-adjusting card feeder (10–50 mil)
2. 200-card input hopper, 100-card output hopper, 15-card reject hopper
3. Manual card feed capability

• Connectivity: USB 2.0 and 10/100 Ethernet for seamless integration
• Encoding Options:

1. Magnetic stripe (HiCo/LoCo)
2. MIFARE® ISO 14443 A & B contactless
3. ISO 7816 contact smart card encoder

• Lamination Options:

1. Single- or dual-sided wasteless lamination
2. Compatible with clear, magnetic stripe, smart card, and holographic laminates

• User Interface:

1. 21-character x 6-line LCD display with configurable soft keys
2. Kensington® lock slot for physical security

• Software Compatibility:

1. Microsoft® Windows-certified drivers
2. Zebra CardStudio, ZMotif SDK, and Zebra Virtual PrintWare support

Dimensions:

• Printer only: 27.5" W × 10.9" D × 12.0" H
• With laminator: 38.0" W × 10.9" D × 12.0" H Weight:
• Printer only: 42.30 lbs (12.2 kg)
• With laminator: 39.5 lbs (17.9 kg) Warranty: 2-year unlimited coverage on printer and printhead

The Zebra ZXP Series 7 (Z72-000C0000US00) is a top-rated solution in the ID Card Printers category—trusted by professionals who demand speed, security, and superior print quality for mission-critical card issuance programs.

Zebra ZXP7 Brochure
