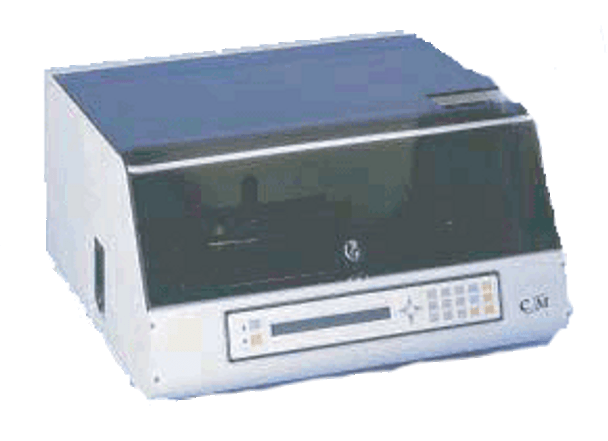

CIM ZP04301 Maxima 861Embosser

CIM ZP04301 CIM Maxima 861 Embosser

$14,940.00

Categories: ,
Description

The CIM ZP04301 Maxima 861 is ideal for medium sized production volumes. Available with special characters for the personalization of international credit cards such as VISA and MasterCard. was developed by CIM. CIM specializes in developing premium products. All ID Focuses on sourcing the most reliable products. This product was sourced by All ID because it is one of the top-rated products from CIM.



The Maxima 861 is ideal for medium sized production volumes. Available with special characters for the personalization of international credit cards such as VISA and MasterCard.

CIM ZP04301 Maxima 861 Embosser

Available Options Infill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard). LCD off line editing. Auxiliary printer port. Chip contact initializing.
Built-in Tipper Unit Off-line tipping possibility (11 lines). Ribbon saving feature.
Communication Interface Serial RS232 port.
Dimensions 25″x19″x11,50″ (745 x 485 x 290 mm)
Weight 120 lbs (54 kg)
Drum Capacity Drum capacity: 60/80/105 characters, embossing and/or infill.
Electrical Requirements 117 V / 60 Hz – 220 V / 50 Hz.
Input Hopper Capacity 200 cards. Pre-embossed card feed feature.
Magnetic Stripe Encoding 3 Tracks ISO 7811, LoCo/HiCo.
Output Hopper Capacity 100 embossed cards.
Performance Approx. 260 CPH
Reject Reject hopper.
Software Windows based application software. Firmware: self diagnostic, select automatic repeat card, pre-encoded card reading with full post processing of the same card, reset and non reset counters. System status and diagnostic messages reported on PC.
CIM Maxima 861

The Preferred Embosser by Banks and Credit Institutions.

The Maxima 861 is ideal for medium sized production volumes

  • Available with special characters for the personalization of international credit cards such as VISA and MasterCard.
  • Reject hopper with alarm function for cards with encoding error.
  • Available with the following options on request: high character capacity embossing drum. indent module. magnetic stripe and chip encoding station.

CIM_Maxima_8-Series.pdf

Related products

  • ZP04001 CIM Maxima 621 medicard Manual Feeder Embosser ZP04001

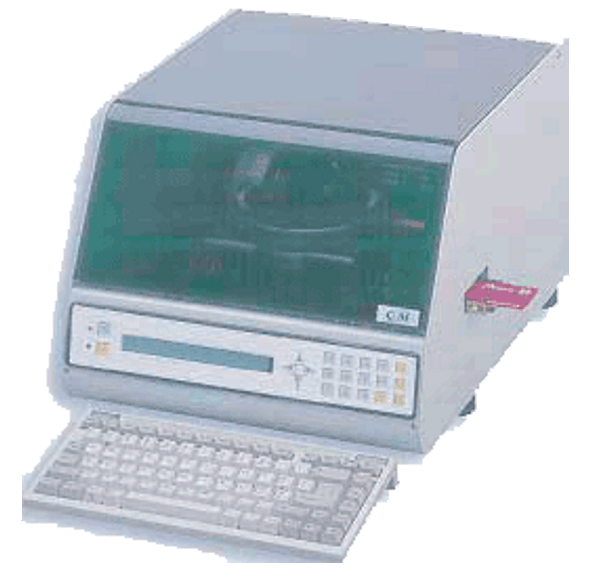

    ZP04001 CIM Maxima 621 medicard Manual Feeder Embosser

    $3,810.00     Add to cart
  • ZM04801 CIM M10HE Embosser & Debosser ZM04801

    ZM04801 CIM M10HE Embosser & Debosser

    $0.00     Add to cart
  • ZP04101 CIM Maxima 821 Embosser ZP04101

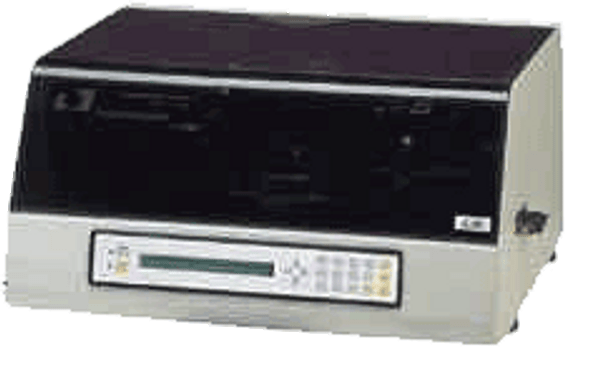

    ZP04101 CIM Maxima 821 Embosser
