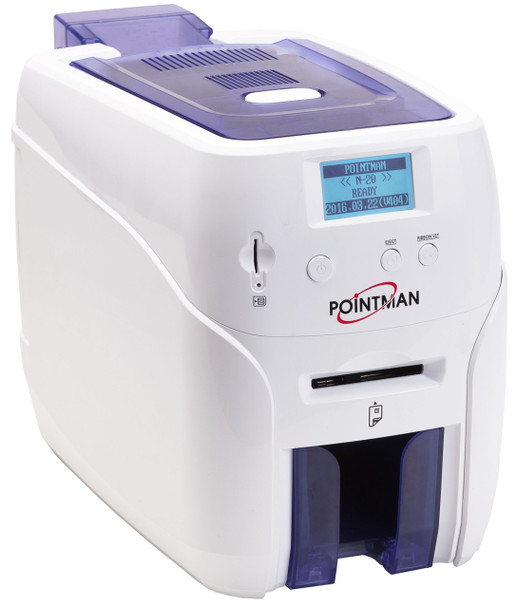

Pointman N21-0021-00 Nuvia N20 Dual Side Printer ‐ USB & Ethernet + MIFARE/DESFire Card Encoder

The Pointman N21-0021-00 Nuvia N20 dual side printer, USB & Ethernet N21-0021-00 was developed by Pointman. Pointman specializes in developing high tech products. All ID Focuses on sourcing only the most reliable products. This product was sourced by All ID because it is one of the top rated products developed by Pointman.

NUVIA

LOCK IN A MORE SECURE CARD PRINTING SOLUTION. NUVIA FITS YOUR SPACE, YOUR NEEDS, AND YOUR BUDGET.

You can simplify your card printing without giving up quality and security. The POINTMAN NUVIA direct-to-card printer produces vibrant color, edge-to-edge printing, and security features to issue professional-looking cards instantly.

IDEAL FOR

• ID badges

• Access control cards

• Bank cards

• Gift cards

• Loyalty cards

• Membership cards

FAST PRINT SPEED. 190 cards/ hour (full-color, single-sided).

COMPACT. Lightweight design with the small footprint allow you to operate the Nuvia card printer where you need it most.

FLEXIBLE FEEDING OPTIONS. Innovative hopper lets you load up to 200 cards.

USER-FRIENDLY. Simplicity is built into the design, operation, and user interface.

READY TO RUN. Your Nuvia comes loaded with Card Designer TM software and printer driver already installed.

RELIABLE. Pointman offers unmatched protection, with a 2-year warranty on the printer and 2 years on the print head.

PRINTER

•Direct-to-card Dye-sublimation/Resin thermal transfer
•Single sided printing
•Edge-to-Edge printing
•Full-color and monochrome printing capability
•300 dpi (11.8 d p m), 16.7 Million Colors
•128 MB memory

CARD

•Card Type: PVC and composite PVC Cards
•Card Thickness: 15 mil ~ 40 mil card
•Card Format ISO CR 80-ISO 7810 (3.370 in x 2.125 In)

Capacity
-Input hopper: 100 cards(30 mil)
-Up too 200 cards with dual hopper option
-Output hopper: 60 cards(30 mil)


OPTIONAL ENCODING

Magnetic Stripe encoding

Contact smart card encoding
-E M V Level 1 (PC/SC, serial)

Contactless smart card encoding


OPERATING ENVIRONMENT

•Min/Max operating temperature ( 5 / 40̊ C), (41 / 104 F)
•Humidity: 20% to 65% non-condensing
•Min/max storage temperature (-10 / 60̊ C), (14 / 140 F)
•Storage humidity: 20% t o 70% non-condensing

INTERFACE

•USB 2.0 (High-Speed)
•Built in 10/100 Ethernet IP Port (optional)
•WiFi (optional)

CONSUMABLE

Ribbon
•YMCKO: 200 prints/roll
•Y M C K 0-K: 170 prints/roll
•Half YMCKO: 400 prints/roll
•KO: 500 prints/roll
•Monochrome ribbon: 1000 prints/roll

DRIVER & SOFTWARE

Operating System
•Windows Vista, Windows 7 & 8 & 10,
-Windows 2003/2008 server

Software Package
-”Card Designer“ for Easy Printing

Font
-True Type Fonts via Windows Drivers

DISPLAY

•4-line white LCD indicates status of printer
•LED s notifications of empty/low level ribbon, empty input hopper, error

PACKAGING CONTENT

•Printer
•Quick Start Manual
•Flash drive (driver, software and user manual)
•USB printer cable
•Cleaning roller and card (CR-80)
•Power supply and cord

CLEANING KIT OPTIONAL

Standard Kit
-(T-card 2, CR-80 Cleaning Card 2, Alcohol Swab 3)

Advanced Kit
-(T-card 3, CR-80 Cleaning Card 5, Alcohol Swab 7, Thermal Cleaning Pen 1)
• CR·80 Cleaning Card, Thermal Print Head Cleaning Pen

PRINTING SPEED

Full-Color Printing
-Single Side: 180 ~ 200 cards / hour
-Dual Side: Y M C K O K 140 / hour    YMCKO 95 / hour

Mono printing -800 cards / hour

POWER

Input-AC 100 V~240 V, 50/60 HZ

Output-DC 24 V, 2.5 A

SECURITY OPTIONAL

Physical lock slot
• Hopper lock (N 20/N 30)
• Top cover lock

CERTIFICATION

•FCC Class A.
•CE (EN 55022 Class A, EN 55024 )
•ENERGY STAR

WARRANTY

*under specific condition
•Printer 2-years
•Printer Head 2-years

For a reliable, easy-to-use card printer that delivers a security card printing solution, contact your authorized Pointman representative ALL ID Systems 800-688-6373 to schedule a demo of the Nuvia card printer.
