CIM Maxima 821 & Maxima 861 Embossers Brochure

(No reviews yet) Write a Review
SKU:
CIM Maxima 821 and Maxima 861 Embosser
UPC:
CIM Maxima 821 and Maxima 861 Em
$0.00
Frequently bought together:

Description

The CIM Maxima 821 & Maxima 861 Embossers Brochure was developed by Brochures. Brochures specalizes in developing premium products. All ID Focuse on sourcing the most reliable products. This product was sourced by All ID because it is one of the top rated products manufactured by Brochures.




CIM Maxima 821 and Maxima 861 Embossers Brochure

Available OptionsInfill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard). LCD off line editing. Auxiliary printer port. Chip contact initializing.
Built-in tipper UnitYes, in model 821T
Communication InterfaceSerial RS232 port.
Dimensions
 		Model 821: 17,75"x19"x11,50" (x450 x 485 x 290 mm).
Model 821T: 23"x19"x11,50"x93 (585 x 485 x 290mm)
WeightModel 821: 78 lbs (35 kg)
Model 821T: 93 lbs (42 kg)
Drum CapacityDrum capacity: 60/80/105 characters, embossing and/or infill.
Electrical Requirements117 V / 60 Hz - 220 V / 50 Hz.
Input Hopper CapacityManual feed: SPA (Single Point Access system). Pre-embossed card feed feature.
Magnetic Stripe Encoding3 Tracks ISO 7811, LoCo/HiCo.
PerformanceOne card in 15 seconds
RejectAlarm notification.
SoftwareWindows based application software. Firmware: self diagnostic, select automatic repeat card, pre-encoded card reading with full post processing of the same card, reset and non reset counters. System status and diagnostic messages reported on PC.

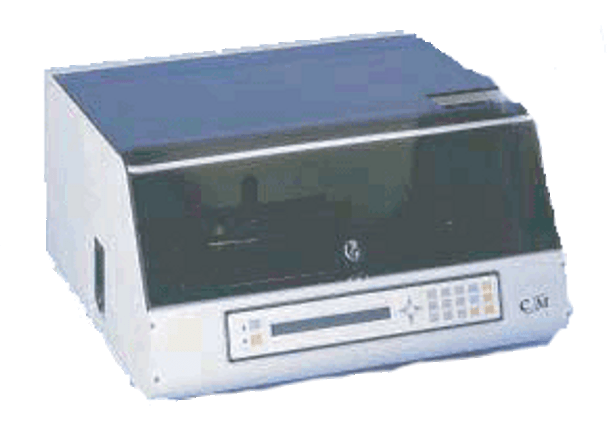

CIM Maxima 821 & Maxima 821T

Proven Technology Especially For You.

A unit designed for immediate and decentralized issuance of small quantities of plastic cards.

  • Equipped with the SPA system: Cards are inserted and removed from the single access point for maximum operator convenience.
  • Convenient and easy to use.
  • Optional magnetic stripe encoding
  • Two available versions: without (821) and with (821T) TIPPING module. for embossed characters.
Available OptionsInfill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard). LCD off line editing. Auxiliary printer port. Chip contact initializing.
Built-in Tipper UnitOff-line tipping possibility (11 lines). Ribbon saving feature.
Communication InterfaceSerial RS232 port.
Dimensions25"x19"x11,50" (745 x 485 x 290 mm)
Weight120 lbs (54 kg)
Drum CapacityDrum capacity: 60/80/105 characters, embossing and/or infill.
Electrical Requirements117 V / 60 Hz - 220 V / 50 Hz.
Input Hopper Capacity200 cards. Pre-embossed card feed feature.
Magnetic Stripe Encoding3 Tracks ISO 7811, LoCo/HiCo.
Output Hopper Capacity100 embossed cards.
PerformanceApprox. 260 CPH
RejectReject hopper.
SoftwareWindows based application software. Firmware: self diagnostic, select automatic repeat card, pre-encoded card reading with full post processing of the same card, reset and non reset counters. System status and diagnostic messages reported on PC.

CIM Maxima 861

The Preferred Embosser by Banks and Credit Institutions.

The Maxima 861 is ideal for medium sized production volumes

  • Available with special characters for the personalization of international credit cards such as VISA and MasterCard.
  • Reject hopper with alarm function for cards with encoding error.
  • Available with the following options on request: high character capacity embossing drum. indent module. magnetic stripe and chip encoding station.
