CIM

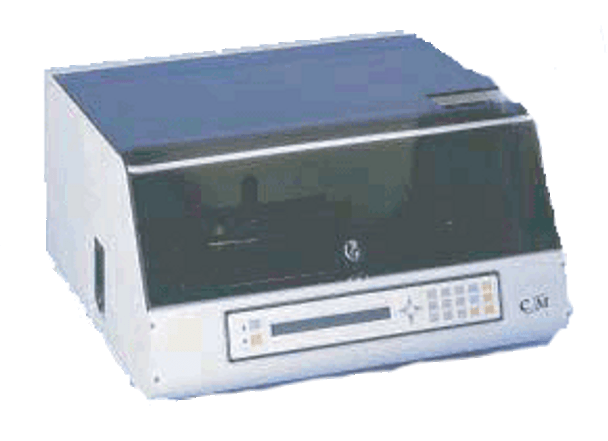

CIM ZP04301 CIM Maxima 861 Embosser

(No reviews yet) Write a Review
SKU:
ZP04301
UPC:
ZP04301
MSRP: $14,940.00
$0.00
— You save $14,940.00
Frequently bought together:

Description

The CIM ZP04301 Maxima 861 is ideal for medium sized production volumes. Available with special characters for the personalization of international credit cards such as VISA and MasterCard. was developed by CIM. CIM specializes in developing premium products. All ID Focuses on sourcing the most reliable products. This product was sourced by All ID because it is one of the top-rated products from CIM.




The Maxima 861 is ideal for medium sized production volumes. Available with special characters for the personalization of international credit cards such as VISA and MasterCard.

CIM ZP04301 Maxima 861 Embosser

Available OptionsInfill device in front version (font OCR B1) or in rear (font OCR A1 or MasterCard). LCD off line editing. Auxiliary printer port. Chip contact initializing.
Built-in Tipper UnitOff-line tipping possibility (11 lines). Ribbon saving feature.
Communication InterfaceSerial RS232 port.
Dimensions25"x19"x11,50" (745 x 485 x 290 mm)
Weight120 lbs (54 kg)
Drum CapacityDrum capacity: 60/80/105 characters, embossing and/or infill.
Electrical Requirements117 V / 60 Hz - 220 V / 50 Hz.
Input Hopper Capacity200 cards. Pre-embossed card feed feature.
Magnetic Stripe Encoding3 Tracks ISO 7811, LoCo/HiCo.
Output Hopper Capacity100 embossed cards.
PerformanceApprox. 260 CPH
RejectReject hopper.
SoftwareWindows based application software. Firmware: self diagnostic, select automatic repeat card, pre-encoded card reading with full post processing of the same card, reset and non reset counters. System status and diagnostic messages reported on PC.

CIM Maxima 861



The Preferred Embosser by Banks and Credit Institutions.

The Maxima 861 is ideal for medium sized production volumes

  • Available with special characters for the personalization of international credit cards such as VISA and MasterCard.
  • Reject hopper with alarm function for cards with encoding error.
  • Available with the following options on request: high character capacity embossing drum. indent module. magnetic stripe and chip encoding station.

CIM_Maxima_8-Series.pdf

View AllClose

Warranty Information

null
View AllClose

Related Products

Related Products

CIM Maxima 821 & Maxima 861 Embossers Brochure CIM Maxima 821 and Maxima 861 Embosser
Quick view

CIM Maxima 821 & Maxima 861 Embossers Brochure

Brochures

$0.00
The CIM Maxima 821 & Maxima 861 Embossers Brochure was developed by Brochures. Brochures specalizes in developing premium products. All ID Focuse on sourcing the most reliable products. This...

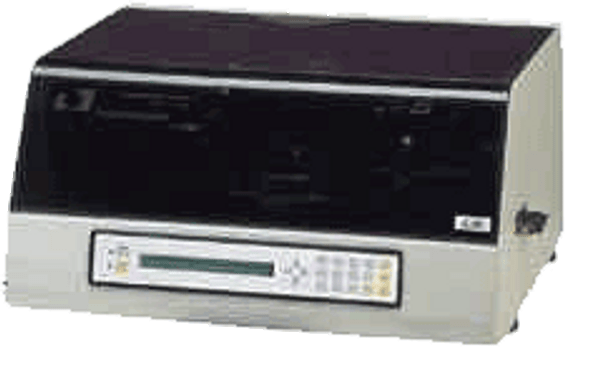

ZP04101 CIM Maxima 821 Embosser ZP04101
